We sell solar water pumping kits that are easy for contractors and farmers to install!
(We can also supply grid only lift station kits)
Solar Lift Station Kit Sizes
1/2HP, 120-230gpm (150gpm @ 10' lift)
1HP, 150-300gpm (230gpm @ 10' lift)
2HP, 200-525gpm (350gpm @ 10' lift)
3HP, 275-525gpm (475gpm @ 10' lift)
5HP, 550-1000gpm (975gpm @ 10' lift)
*Flow varies based on total dynamic head and pump impeller selection

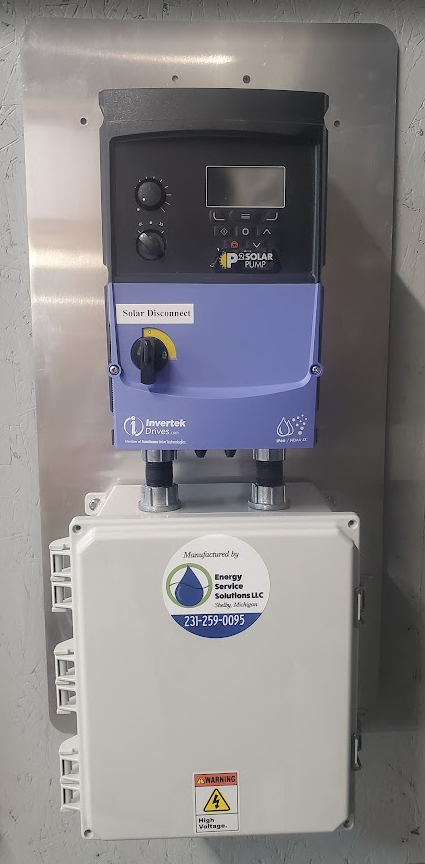

The control panel below comes pre-wired. All you have to do is run the supplied pump and float wires into the box and land them on the labeled terminal blocks. The control panel mounts to the solar panel stand via supplied unistrut clamps.
This pre-wired control system can drive up to a 2HP, 230Vac pump motor. It includes a pre-wired 30A portable generator plug to allow easy backup operation.
When driving a 2HP pump, this system can pump 350gpm at 10' of lift. For less than 10' lift, we have used higher pump impeller angles to pump over 500gpm with this system.
This pre-wired control system can drive up to a 3HP, 230Vac pump motor. When paired with a 3HP pump the system can produce up to 475gpm at 10' of lift.
Cellular Remote Monitor
A basic cellular based remote monitor is available to keep track of your lift station! We have more on this coming in fall 2021 so stay tuned.
A gasoline portable generator is available to provide extended pump runtime during rainy days or nightime
Auto start generator

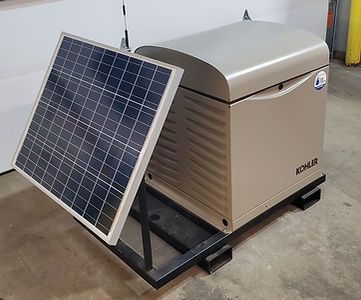

We can offer a number of auto start generator options to provide automatic power to run the pump station when the sun isn't shining.
We are a dealer for Generac and Kohler
We also have custom diesel generators available that are extremely fuel efficient for cases where the generator is expected to see a lot of runtime.
Kohler offers unique products to solve the problem of providing reliable generator backup to our off grid solar lift stations. Please contact us to learn about custom solutions we can offer.
